Lab Overview
The lab consists of the following:
- FortiGate 40F HA pair
- Intel NUC 10, 2TB HDD, 32GB RAM, Promox hypervisor
- VMs: FortiAuthenticator, FortiClient EMS, FortiManager, Windows Server 2022, Windows 11 PC
- Microsoft Azure demo tenant
- Public domain shaunlab.com

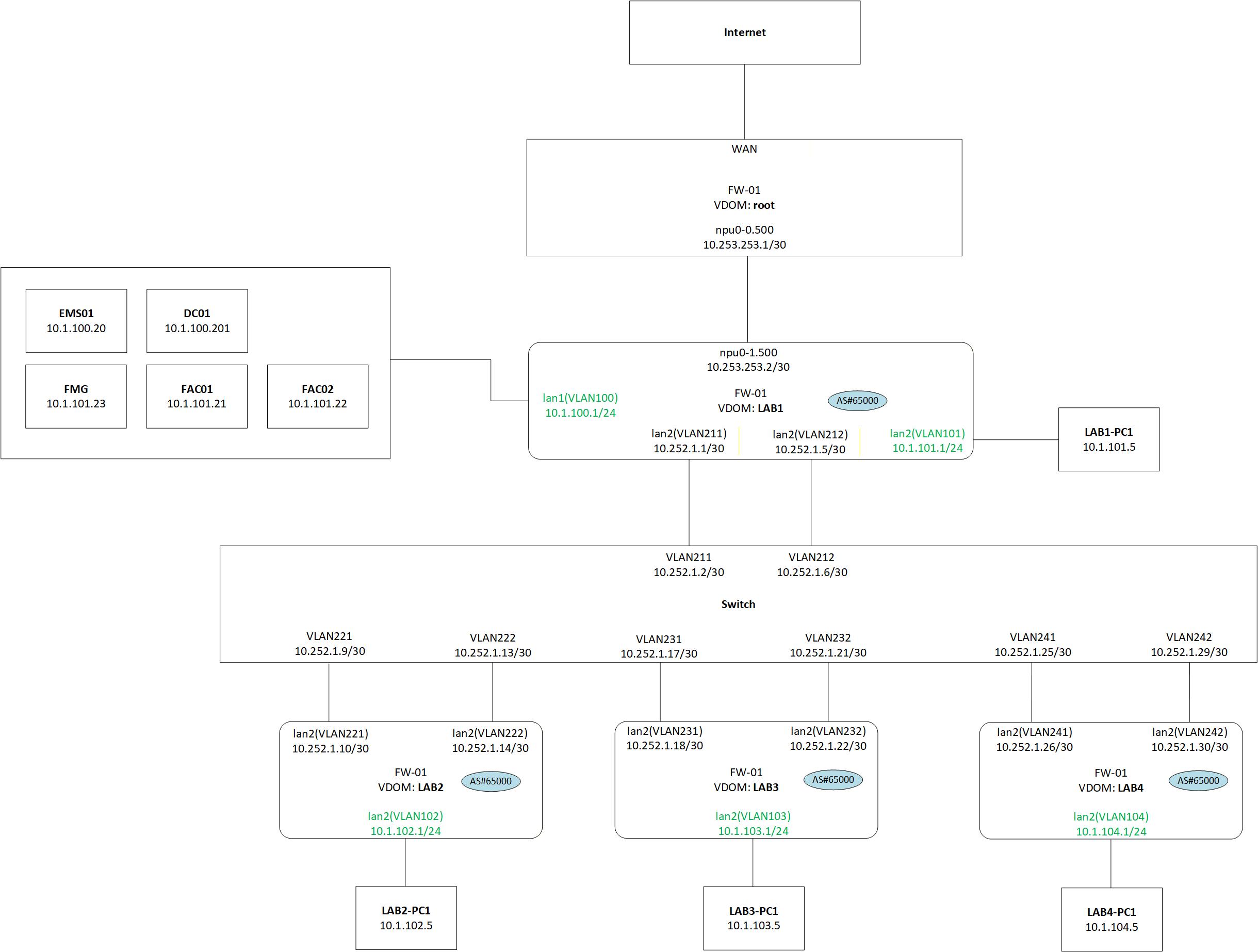

Physical Topology:

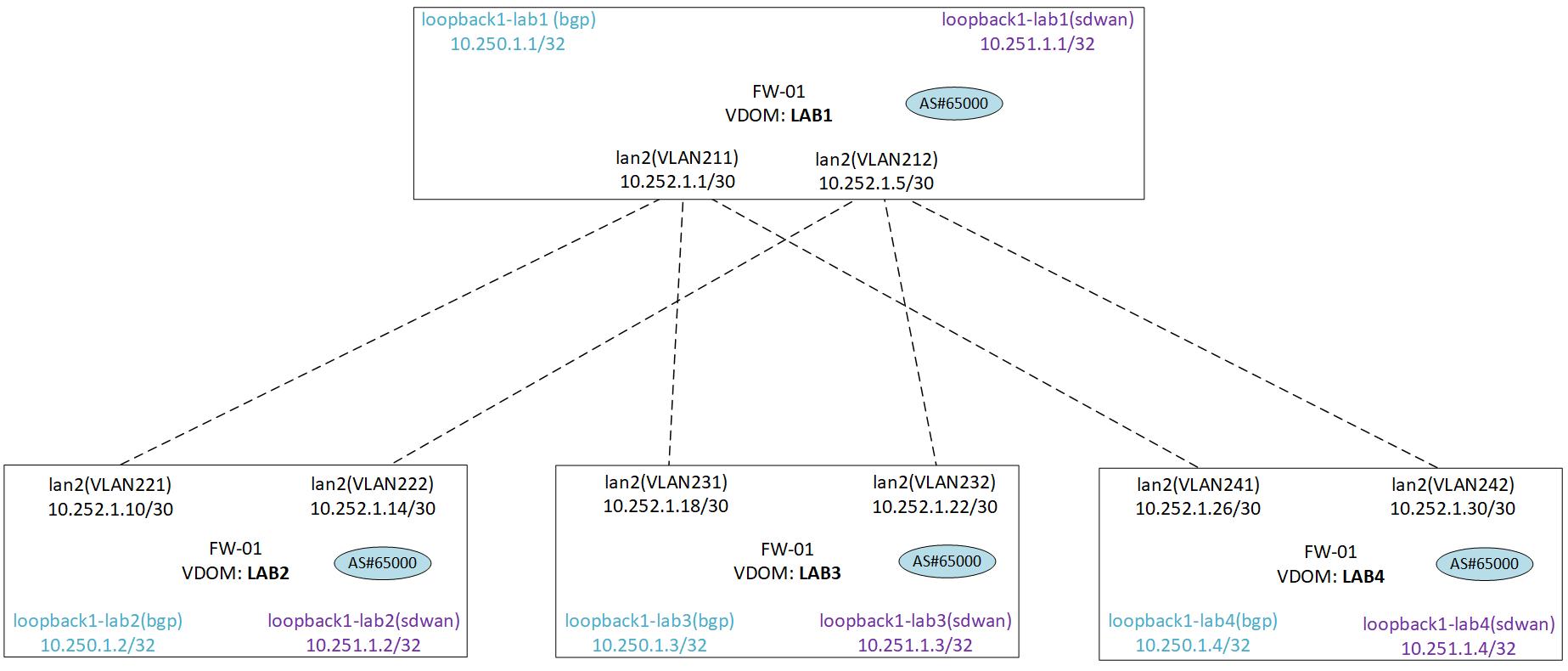

VPN Topology – Underlays:

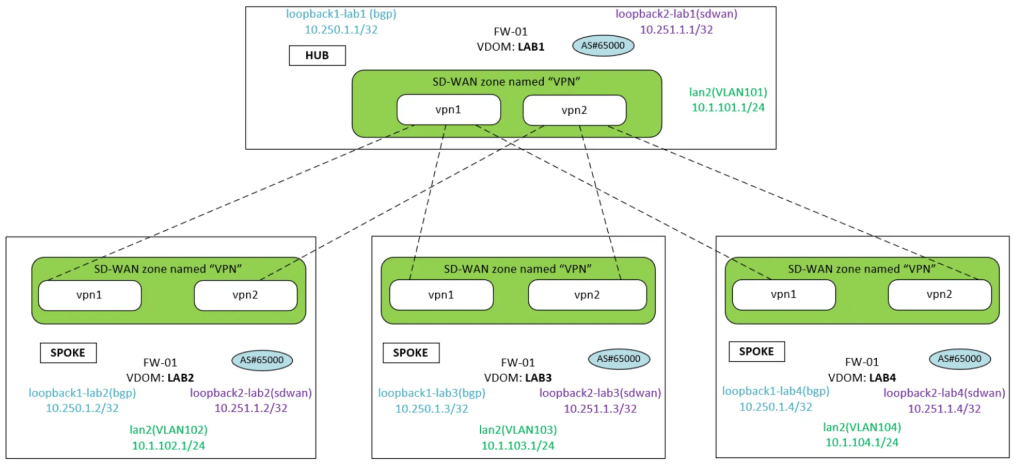

VPN Topology – Overlays:
