SD-WAN traffic steering

Introduction

This article demonstrates the SD-WAN traffic steering strategy called “Remote Health Signaling”.

In this strategy, the Spoke firewalls continuously ping the Hub firewall’s loopback IP address. These ping packets also carry SD-WAN health information, allowing the Hub to become aware of which PVN tunnels to the spokes are the best or most preferred based on the priority value inserted into the routes received from the Spokes.

If the Spoke determines the ping to the hub is within the defined SLA parameters, the Spoke will attach an additional route attribute to it’s own advertised prefix with an attractively low (and therefore more preferred) value. This happens for each VPN tunnel between the Spokes and the Hub.
Similarly, if it falls out of SLA, it will attach a more “expensive” route value, making it a less preferred path to the Spoke prefix, but still a path which could be usable.
When each VPN is wthin SLA, the route priorities can be staggered so that when some or all paths are in SLA, it will ensure the preferred paths are used.
- As an example, if we have VPN tunnels over fibre, LTE and Starlink, you can attach the lowest route priority to the VPN tunnel over fibre.

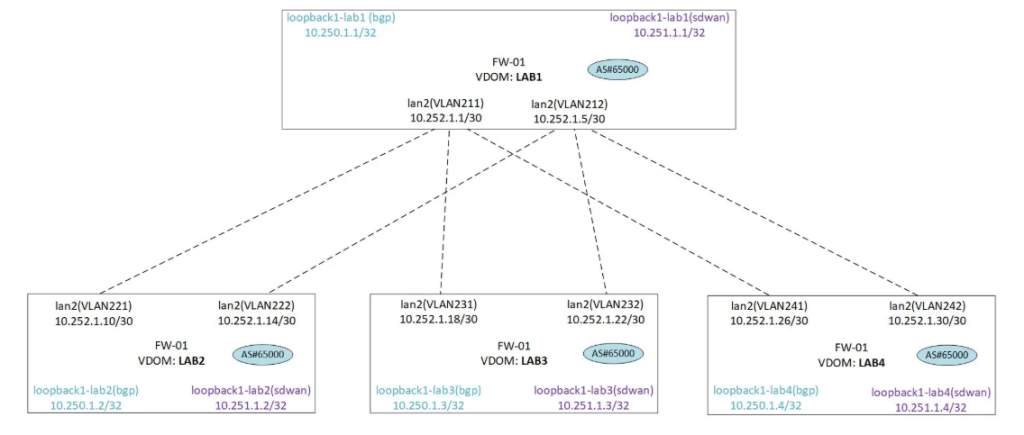

The topology used to demonstrate this feature is shown below:

Configuration – Hub

The following unique configuration is implemented on the Hub.

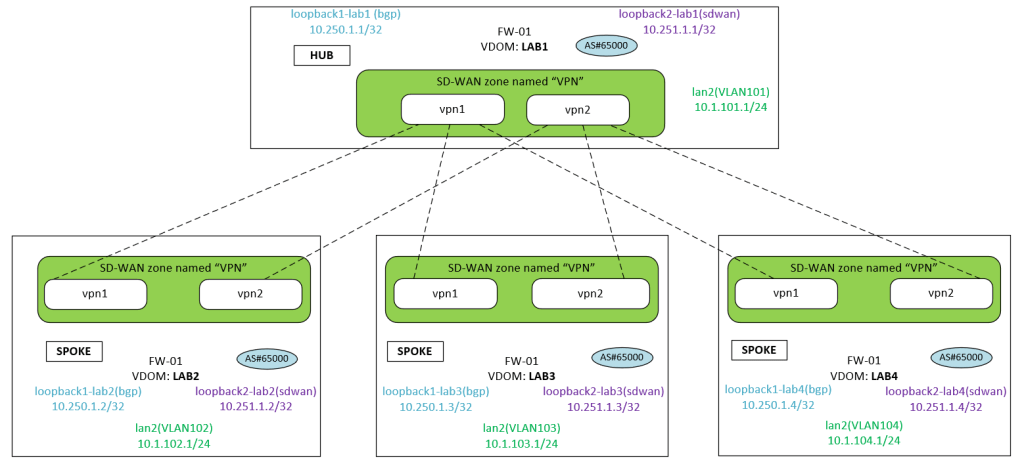

Both vpn1 and vpn2 interfaces are placed into an SD-WAN zone.
The following additional configuration is added for the Hub to participate in remote health signaling:


BGP:
config router bgp
set recursive-inherit-priority enable
SD-WAN:
config system sdwan
    config health-check
        edit "Remote_health_check"
            set detect-mode remote  <---  use the spoke's SLA value
            set sla-id-redistribute 1 <--- check this
            set members 1 2
            config sla
                edit 1
                    set link-cost-factor remote <--- check this
                next
            end
        next
    end
end



Configuration – Spokes

The following unique configuration is implemented on the Spokes.

Both vpn1 and vpn2 interfaces are placed into an SD-WAN zone.
SD-WAN
- config system sdwan
  - config members
    - edit 1
      - set priority-in-sla 60
      - set priority-out-sla 120
    - next
    - edit 2
      - set priority-in-sla 70
      - set priority-out-sla 140
    - next
  - end
- config health-check
  - edit “HUB”
    - set embed-measured-health enable
    - set sla-id-redistribute 1

Full Configuration

The sections below shows the full configuration so you can understand the overall configuration. I have used BGP on Loopback as my site to site VPN type.

Hub – Full Configuration

IPSec VPN

FW-01 (LAB1) # show vpn ipsec phase1-interface
config vpn ipsec phase1-interface
    edit "vpn1-hub1"
        set type dynamic
        set interface "LAB1-VLAN211"
        set ike-version 2
        set peertype any
        set net-device disable
        set exchange-ip-addr4 10.250.1.1
        set proposal aes256-sha256
        set add-route disable
        set dpd on-idle
        set dhgrp 21
        set auto-discovery-sender enable
        set network-overlay enable
        set network-id 1
        set transport auto
        set psksecret ENC xxxxxxx
        set dpd-retryinterval 5
    next
    edit "vpn1-hub2"
        set type dynamic
        set interface "LAB1-VLAN212"
        set ike-version 2
        set peertype any
        set net-device disable
        set exchange-ip-addr4 10.250.1.1
        set proposal aes256-sha256
        set add-route disable
        set dpd on-idle
        set dhgrp 21
        set auto-discovery-sender enable
        set network-overlay enable
        set network-id 2
        set transport auto
        set psksecret xxxxxxx
    next
end
FW-01 (LAB1) #

BGP:

FW-01 (LAB1) # show router bgp
config router bgp
    set as 65000
    set router-id 10.250.1.1
    set keepalive-timer 15
    set holdtime-timer 45
    set ibgp-multipath enable
    set additional-path enable
    set recursive-next-hop enable
    set recursive-inherit-priority enable <---- added for Remote Health Signaling
    config neighbor-group
        edit "spoke-sites"
            set advertisement-interval 1
            set next-hop-self enable
            set soft-reconfiguration enable
            set interface "loopback1-lab1"
            set remote-as 65000
            set connect-timer 1
            set update-source "loopback1-lab1"
            set additional-path send
            set route-reflector-client enable
        next
    end
    config neighbor-range
        edit 1
            set prefix 10.250.1.0 255.255.255.0
            set neighbor-group "spoke-sites"
        next
    end
    config network
        edit 1
            set prefix 10.1.100.0 255.255.255.0
        next
        edit 2
            set prefix 10.1.101.0 255.255.255.0
        next
        edit 3
            set prefix 10.251.1.1 255.255.255.255
        next
    end
end
FW-01 (LAB1) #

SD-WAN:


config system sdwan
    set status enable
    config zone
        edit "VPN"
        next
    end
    config members
        edit 1
            set interface "vpn1-hub1"
            set zone "VPN"
        next
        edit 2
            set interface "vpn1-hub2"
            set zone "VPN"
        next
    end
    config health-check
        edit "Remote_health_check"
            set detect-mode remote <--- to accept remote health check signaling on the hub
            set sla-id-redistribute 1 <---- what is this?
            set members 1 2
            config sla
                edit 1
                    set link-cost-factor remote <--- not sure
                next
            end
        next
    end
end



Spokes – Full Configuration

IPSec VPN

I use the localid value on the spokes phase1 configuration. When you do this, it populates a user friendly name on the VPN tunnel list when you view the tunnels on the hub.


config vpn ipsec phase1-interface
edit "To_Hub"
set localid "Branch_Office_A"
next
end



SD-WAN:


FW-01 (LAB2) # show system sdwan
config system sdwan
    set status enable
    config zone
        edit "VPN"
        next
    end
    config members
        edit 1
            set interface "LAB2-VLAN221"
            set zone "Internet"
            set gateway 10.252.1.9
        next
        edit 2
            set interface "LAB2-VLAN222"
            set zone "Internet"
            set gateway 10.252.1.13
        next
        edit 3
            set interface "vpn1"
            set zone "VPN"
            set source 10.251.1.2
            set cost 10
            set priority 10
            set priority-in-sla 60 <----- When the ping to the hub loopback is within SLA, apply the route metric of 60
            set priority-out-sla 120 <----- When the ping to the hub loopback is out of SLA, apply the route metric of 120
        next
        edit 4
            set interface "vpn2"
            set zone "VPN"
            set source 10.251.1.2
            set priority 10
            set priority-in-sla 70 <----- When the ping to the hub loopback is within SLA, apply the route metric of 70
            set priority-out-sla 140 <----- When the ping to the hub loopback is out of SLA, apply the route metric of 140
        next
    end
    config health-check
        edit "HUB"
            set server "10.251.1.1"
            set update-static-route disable
            set embed-measured-health enable <----- When the firewall pings the hub, insert the priority-in/out-sla metric as well.
            set sla-id-redistribute 1 <----- to be confirmed
            set members 3 4
            config sla
                edit 1
                    set link-cost-factor latency jitter packet-loss
                    set latency-threshold 100
                    set jitter-threshold 150
                    set packetloss-threshold 10
                next
            end
        next
    end
    config service
        edit 1
            set name "To_LAB1_LAN"
            set mode sla
            set dst "LAB1_LAN"
            set src "all"
            config sla
                edit "HUB"
                    set id 1
                next
            end
            set priority-members 3 4
        next
    end
end
FW-01 (LAB2) #



BGP:

FW-01 (LAB2) # show router bgp
config router bgp
    set as 65000
    set router-id 10.250.1.2
    set keepalive-timer 15
    set holdtime-timer 45
    set ibgp-multipath enable
    set recursive-next-hop enable
    set tag-resolve-mode merge
    config neighbor
        edit "10.250.1.1"
            set advertisement-interval 1
            set soft-reconfiguration enable
            set interface "loopback1-lab2"
            set remote-as 65000
            set connect-timer 1
            set update-source "loopback1-lab2"
        next
    end
    config neighbor-group
        edit "spoke-sites"
            set advertisement-interval 1
            set next-hop-self enable
            set soft-reconfiguration enable
            set interface "loopback1-lab2"
            set remote-as 65000
            set update-source "loopback1-lab2"
            set route-reflector-client enable
        next
    end
    config neighbor-range
        edit 1
            set prefix 10.250.1.0 255.255.255.0
            set neighbor-group "spoke-sites"
        next
    end
    config network
        edit 1
            set prefix 10.1.102.0 255.255.255.0
        next
        edit 2
            set prefix 10.251.1.2 255.255.255.255
        next
    end
end
FW-01 (LAB2) #
